Thermodynamic Steam Trap

        PDF

Thermodynamic Steam Trap

Stainless Steel

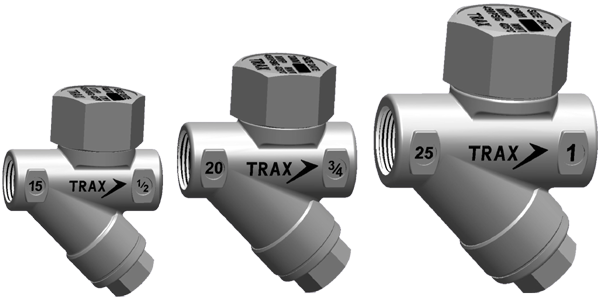

THERMODYNAMIC STEAM TRAP WITH INBUILT STRAINER
SCREWED FEMALE ENDS TO BSPT / BSP/ NPT / SOCKET WELD

BODY TEST PRESSURE 63.2 Kg/cm2 (900 Psig) Hyd.
STEAM WORKING PRESSURE 31.6 Kg/cm2 (450 Psig)
MAXIMUM ALLOWABLE TEMP. 425 °C

Salient Features

  • HARDENDED DISC-TO WITHSTAND CONTINUOUS WATER HAMMERING
  • ALL STAINLESS STEEL CONSTRUCTION-BETTER MECHANICAL PROPERTIES
  • SEAT INTEGRAL WITH BODY- NO POSSIBILITY OF LEAKAGE FROM JOINTS
  • INBUILT STRAINER-AVOIDS CLOGGING.
S. No. Partname Material Specification
1 Top Cover S.S ASTM A743 Gr.CA-40
2 Disc S.S ASTM A743 Gr.CA-40
3 Body S.S ASTM A743 Gr.CA-40
4 Strainer Screen S.S AISI 304
5 Gasket CAF ISL: 2712 Gr. w/1
6 Strainer Cap S.S ASTM A743 Gr.CA-40
Normal Size A L H1 H2
15mm (1/2″) 1/2″ BSP 72 41 57
20mm (3/4″) 3/4″ BSP 78 44 62
25mm (1″) 1″ BSP 93 55 70

Important

Due to Continous development programme, design and data in leaflet are subject to change without any notice.

IBR TEST CERTIFICATES IN FORM III C
are supplied with all valves.

Guarantee

All valves are guranteed against manufacturing defects for a period of 18 months from the date of supply or 12 months from the date of installation whichever ends earlier.However our libality is\limited to repair/replacement of complete valve or defective parts as found suitable.
